Basic Single-Site Deployment

Overview

  • This is the lowest cost and most simple option.
  • No high-availability (HA) design.
  • No failover capability of Verify Privilege RabbitMQ Helper functions in a DR site.
  • Distributed engines communicate to SS over callback ports (typically TCP 443, which is not shown in the diagram).
  • Verify Privilege RabbitMQ Helper traffic is set via static DNS entry and communicates by TCP port 5671 or 5672 (do not use if using TLS).
  • All Sites connect to one site connector in SS.

Requirements

  • Cross-data-center communication between DEs and Verify Privilege RabbitMQ Helper
  • Does not require the creation of Verify Privilege RabbitMQ Helper policies, which are based on input from Professional Services.

Diagram

The reference number for this diagram is A.

Figure: Basic Single-Site Deployment

image-20200923134959441

Basic Multi-Site Deployment

Overview

  • This is the basic single-site deployment plus a hot standby.
  • No HA design.
  • Hot standby of Verify Privilege RabbitMQ Helper for DR.
  • Distributed engines communicate to SS over callback ports (typically TCP 443, which is not shown in the diagram).
  • Verify Privilege RabbitMQ Helper traffic is set via static DNS entry and communicates by TCP port 5671 or 5672 (do not use if using TLS). You can use a CNAME record and update the record during failover.
  • All Sites connect to one site connector in SS.

Requirements

  • Cross-data-center communication between DEs and Verify Privilege RabbitMQ Helper.
  • Does not require the creation of Verify Privilege RabbitMQ Helper policies, which are based on input from Professional Services.

Diagram

The reference number for this diagram is B.

Figure: Basic Multi-Site Deployment

image-20200923135554286

Minimum HA Multi-Site Deployment with Independent Nodes

Overview

  • Minimum HA Verify Privilege RabbitMQ Helper design.
  • Independent Verify Privilege RabbitMQ Helper nodes under load balancer configuration.
  • No failover capability of Verify Privilege RabbitMQ Helper functions in DR site.
  • Distributed engines communicate to SS over callback ports (typically TCP 443, which is not shown in the diagram).
  • Verify Privilege RabbitMQ Helper load balancer configuration only sends traffic to only node one unless it is down, then then it sends traffic to node two. Communicates by TCP port 5671 or 5672 (do not use if using TLS) . This provides localized high availability for patching and more.
  • Singular nodes built as part of a load balancer configuration between multiple data centers is also a design possibility with the same type of load balancer configuration mentioned above. Do so will lose localized HA of Verify Privilege RabbitMQ Helper.
  • All Sites connect to one site connector in Verify Privilege Vault (Verify Privilege RabbitMQ Helper FQDN).

Requirements

  • Cross-data-center communication between DEs and Verify Privilege RabbitMQ Helper.
  • Does not require the creation of Verify Privilege RabbitMQ Helper policies, which are based on input from Professional Services.
  • Local load balancer.

Diagram

The reference number for this diagram is C.

Figure: Minimum HA Multi-Site Deployment with Independent Nodes

image-20200923140254235

Minimum HA Multi-Site Deployment with Cluster

Overview

  • Minimum HA Verify Privilege RabbitMQ Helper design
  • No failover capability of Verify Privilege RabbitMQ Helper functions in DR site.
  • Distributed engines communicate to SS over callback ports (typically TCP 443, which is not shown in the diagram).
  • Verify Privilege RabbitMQ Helper traffic is set to round-robin through load balancers to Verify Privilege RabbitMQ Helper nodes in cluster. Communicates by TCP port 5671 or 5672 (do not use if using TLS).
  • All Sites connect to one site connector in Verify Privilege Vault (Verify Privilege RabbitMQ Helper FQDN).

Requirements

  • Cross-data-center communication between DEs and Verify Privilege RabbitMQ Helper.
  • Requires the creation of Verify Privilege RabbitMQ Helper policies, which are based on input from Professional Services.
  • Local load balancer.

Diagram

The reference number for this diagram is D.

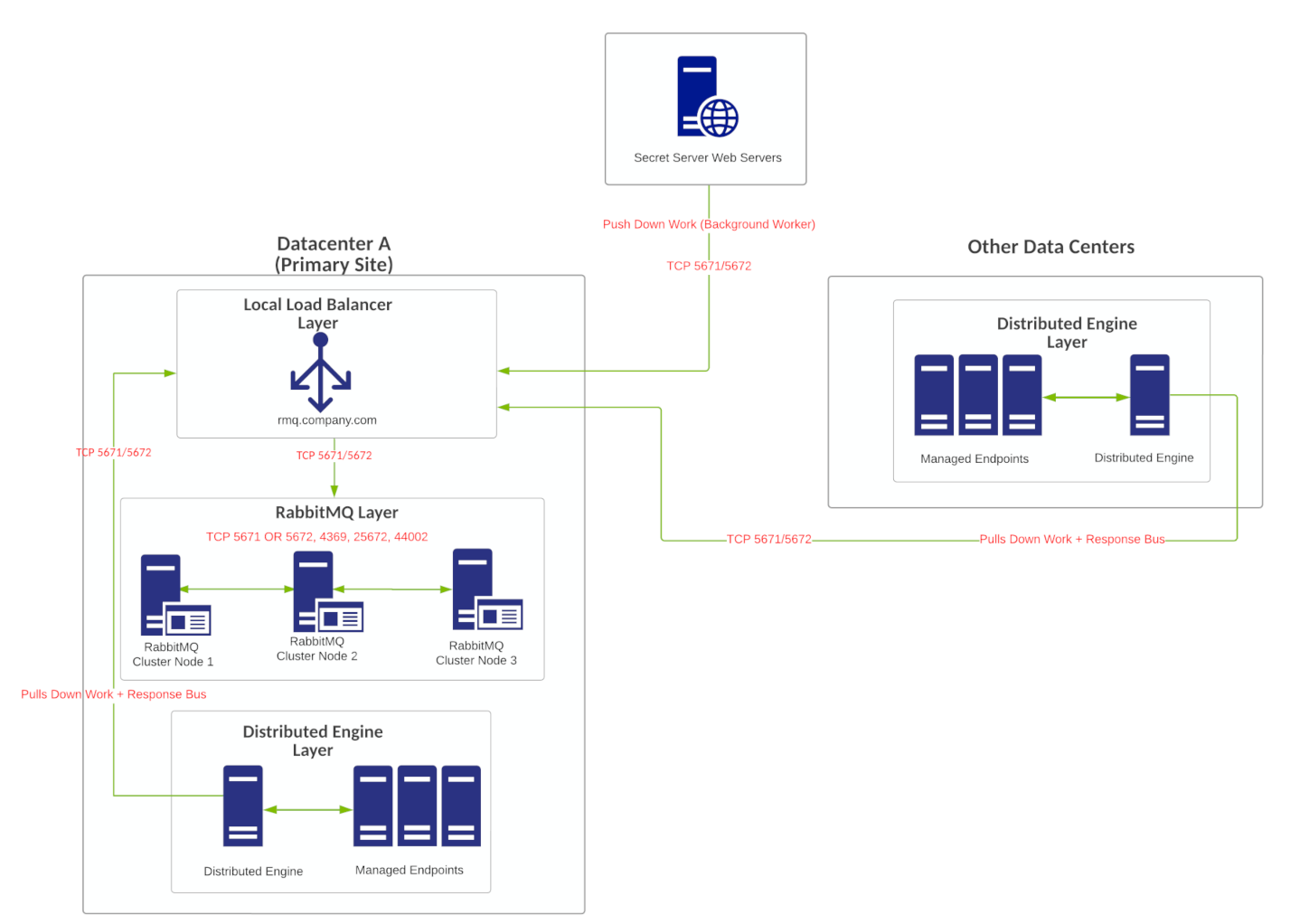

Figure: Minimum HA Multi-Site Deployment with Cluster

image-20200923140744280

Average HA/DR Multi-Site Deployment

Overview

  • Verify Privilege RabbitMQ Helper clusters in multiple locations (typically primary and secondary DR site).
  • Distributed engines communicate to SS over callback ports (typically TCP 443, which is not shown in the diagram).
  • Verify Privilege RabbitMQ Helper traffic for each local load balancer configuration is set to round-robin traffic through load balancer to Verify Privilege RabbitMQ Helper nodes in each respective cluster. Communicates by TCP port 5671 or 5672 (do not use if using TLS).
  • Two site connectors configured in SS. This is a good design for manual failover between the primary and disaster recovery site but will require manual changes within SS for full functionality to resume in DR. The distributed engines global configuration has only the option for one response bus. This implies that traffic may be sent to one Verify Privilege RabbitMQ Helper cluster but will be processed via response by the primary data center Verify Privilege RabbitMQ Helper cluster.
  • The dotted line traffic for the DR distributed engines back to the Verify Privilege RabbitMQ Helper cluster indicates the down primary data center being down and the DR data center being online. In this case, this traffic would become active If the primary site is down. Any functions or secrets in SS assigned explicitly to that site connector will not function without reassigning those functions to the other site connector and Verify Privilege RabbitMQ Helper cluster.

Requirements

  • Requires the creation of Verify Privilege RabbitMQ Helper policies, which are based on input from Professional Services.
  • Multiple load balancers.

Diagram

The reference number for this diagram is E.

Figure: Average HA/DR Multi-Site Deployment

image-20200923141540609

Best HA/DR Multi-Site Deployment

Overview

  • Verify Privilege RabbitMQ Helper clusters are in multiple locations (typically primary and secondary DR site).
  • Distributed engines communicate to SS over callback ports (typically TCP 443, which is not shown in the diagram).
  • Verify Privilege RabbitMQ Helper traffic is set to force all traffic to the primary cluster in the primary site, unless the primary site is down. Communication through load balancer is via TCP port 5671 or 5672 (do not use if using TLS).
  • Options available for site connector creation or use:

    • Sites and site connectors are intended to be primarily location based.
    • This design is best for situations where you want to localize Verify Privilege RabbitMQ Helper traffic and control traffic directly through the load balancer configurations.
  • This design is best suited for true DR situations where we assume when the primary location is down or offline that the entire data center is also.
  • If the primary location is only partially down (Verify Privilege RabbitMQ Helper only is offline), it is possible secrets or features in SS assigned to that specific site connector will not function correctly.

Site connector options:

  • Three site connectors and three or more sites configured in SS to localize Verify Privilege RabbitMQ Helper traffic for each respective location-based Verify Privilege RabbitMQ Helper cluster:

    • One site connector for the global load balancer URL (Used for all other locations/sites).
    • One site connector for primary site.
    • One site connector for secondary (DR) site.
  • Other data center's distributed engines typically connect to the primary site Verify Privilege RabbitMQ Helper cluster global load balancer FQDN/VIP.
  • Alternatively, if traffic isolation is not as important, you can have one site connector and all sites point to it. Cross-data-center communication between DEs and all Verify Privilege RabbitMQ Helper clusters is required. A one-site connector design will eliminate application-side changes during failover.
  • Traffic should be forced to Verify Privilege RabbitMQ Helper cluster or nodes in the primary site for proper functionality.

Requirements

  • Require the creation of Verify Privilege RabbitMQ Helper policies, which are based on input from Professional Services.
  • Multiple load balancers.
  • Global load balancers.

Diagram

The reference number for this diagram is F.

Figure: Best HA/DR Multi-Site Deployment
